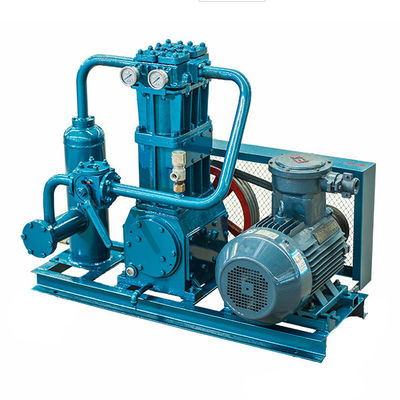

CNEX Cold Air 380V 1220x680x960mm LPG Compressor
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangkang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | 10500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $980.00 - $1,150.00 / Set |
| Packaging Details: | Standard Export Pack |
| Delivery Time: | 14 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 Sets per month |
|
Detail Information |
|||
| Item Name: | Compressor | Model: | XK006 |
|---|---|---|---|
| Voltage: | 380V | Rated Power: | 11KW |
| Inlet Pressure: | 1.0Mpa | Discharge Pressure: | 1.6Mpa |
| Compressure Grade: | 1 | Cool Type: | Cold Air |
| Warranty: | 2 Years | Suitable Gas: | LPG/Propane/Butane |
| G.W.: | 430kg | Outline Dimension(L*W*H): | 1220x680x960mm |
| Highlight: | 120mm LPG Compressor,380V LPG Compressor,CNEX gas booster compressor |
||
Product Description
Product Description
Specification
| Supply Included | ||
| Compressor | Motor | Common chassis |
| Air duct | Four way valve | Safety valve |
| Instruments | Spare parts | Factory documents,etc. |
Product manual:
LPG series oil-free lubricating compressor is one of the first products produced by our factory in China. The product has low rotation speed, high component strength, stable operation, long service life and convenient maintenance. ZW series compressors are in the form of units. It integrates compressor, gas-liquid separator, filter, two-position four-way valve, safety valve, check valve, explosion-proof motor and chassis. It has the characteristics of small size, light weight, low noise, good sealing, easy installation and easy operation. This product is mainly used for LPG unloading, loading, pouring, residual gas recovery and residual liquid recovery. It is widely used in liquefied petroleum gas storage and distribution stations, gasification stations, gas mixing stations, gas filling stations, etc. It is a key equipment in the liquefied petroleum gas industry.
| Model | Suitable Gas | Rated Power | Inlet Pressure | Outlet Pressure | Pressure Grade | Revolving Speed | Dimension | Cooling |
| XK006 | LPG/Propane/Butane | 11KW | 1.0Mpa | 1.6Mpa | Class 1 | 730R/min | 1220x680x960mm | Cool Air |
| Other Specifications | |
| Structure | Vertical, air-cooled, double cylinder single action |
| Nominal Volume Flow | 1 m3/min |
| Suction Temperature | Less than 40℃ |
| Exhaust Temperature | Less than 110℃ |
| Lubrication Way | Crankshaft, connecting rod, crosshead: Splash lubrication |
| Cylinder, packing: Oil-free lubrication | |
| Drive Mode | Belt conveyor |
| Installation Mode | Based on |
| Noise dB | 85 A |
| Vibration Intensity | 28 |
