Capacity 180Kg LPG Gas Cylinder Filling Scale With Self Closing Valves
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangkang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | S-TCS-YG-SV Double Filling Nozzle |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Carton Pack, Each Set Packed in 4 CTNS |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000000 Sets per month |
|
Detail Information |
|||
| Product Name: | LPG Gas Filling Scale Compact Filling Nozzle | Rated Power &Frequency: | 220V 50/60Hz |
|---|---|---|---|
| Division: | 50G | Available Industrial: | Energy And Mining, Industrial Gas, Beverage |
| Accuracy: | Class 3 | Pressure: | 0~1.6Mpa |
| Ex-proof Grade: | Ex Ib IICT4 Gb | Installation Support: | Instruction Videos, Manual, Online Support |
| Capacity: | 180Kg | Double Filling Nozzle: | Filling Nozzle Type As Request |
| Highlight: | LPG Gas Cylinder Filling Scale,Capacity 180Kg Cylinder Filling Scale,180KG Weighing Cylinder Filling Scale |
||
Product Description

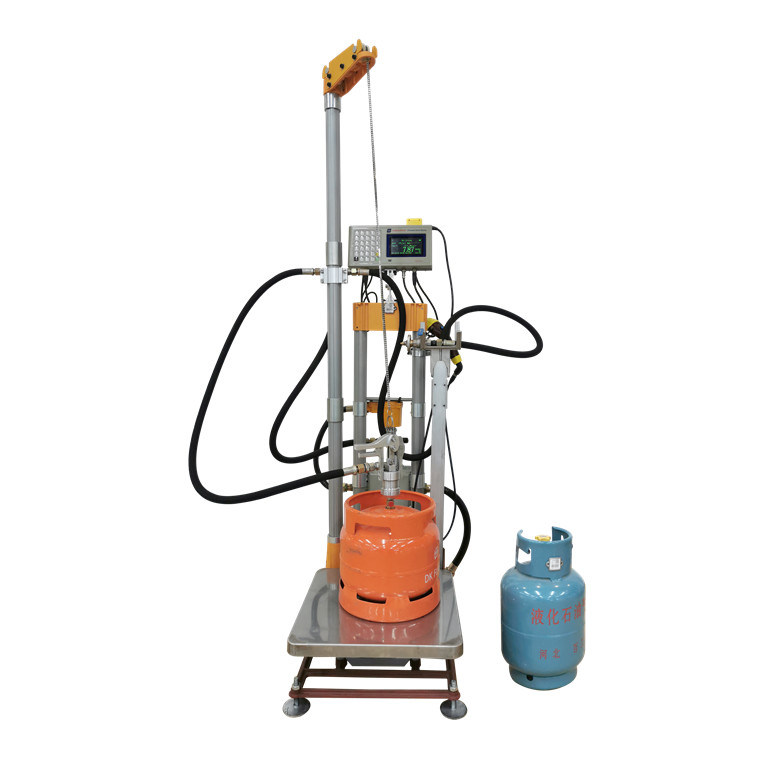

Double Filling Nozzles LPG Gas Cylinder Filling Scale Self-closing Valves Jumbo Valves
When users put LPG Cylinder on the top of the filing platform; load-cell sensor gets weight as force.
The weight of cylinder increases, and the force applied is increases correspondingly.
The electrical signal changes proportionally. As a result electronic will open or close control valves for filling or stopping acordindly.
The Advantage of LPG Filling Scale:
- Automatic tare of the filling head, and bottle weight filling operation convenient
- Double filling nozzles with this filling scale for easier filling, as there are various cylinder type in the market...
- Wireless data transmission optional if need
- It supports a quantitative filling.
- When the specified range is reached then it will automatically cut off the gas filling in the cylinder.
- It has a friendly keyboard for easy operation, has one key operation & a large LCD screen display.
- It has easy and convenient, one key setting feature.
- The feature of the bar code scanning of gas cylinders is also present. It refuses to fill a substandard gas cylinder.
- It has a function to refuse to fill the bottle which is lower than the lower limit bottles and which fills to the upper limit(to prevent accidental overloading).
- On its real-time monitor, it shows the filling details, check the filling amount, and check filling data of important customers
Here is the details about one hardware----LPG filling scale for the tracking system:
|
Performance parameters |
|
| Module | S-TCS-YG-SV-180 |
| Accuracy | III |
| Min. & Max. weighing | 2KG-180KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | 220V, 50/60Hz |
| Filling Nozzle | Different nozzles for various cylinders |
Don't know how to use the filing scale, do not worry.
Here are the process of filling bellow for clearer idea, very simple to operate according the steps:
1.Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3.After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,
scale platform, scanner and holder, seals
