ATEX Wireless Mechanical Cylinder Filling Scale For Carbon Dioxide Gas
Product Details:
| Place of Origin: | China |
| Brand Name: | Xiangkang |
| Certification: | ATEX, CNEX, ISO9001 |
| Model Number: | S-TCS-YG-SV Battery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Carton Pack, Each Set Packed in 4 CTNS |
| Delivery Time: | 5-8 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000000 Sets per month |
|
Detail Information |
|||
| Product Name: | Mechanic Filling Scale Battery | Rated Power &Frequency: | Li-ion Battery |
|---|---|---|---|
| Division: | 50G | Weighing Capacity: | 2Kg-120Kg Or 2Kg-180Kg |
| Suitable Media: | LPG, Liquefied Gas, Industrial Gas | Accuracy: | III |
| Pressure: | 0~1.6Mpa | Anti Explosion Grade: | Ex Ib IICT4 Gb |
| Filling Head: | Single Or Double For Option | Certification: | ATEX,CNEX, ISO9001 |
| Color: | Orange & Silver | ||
| Highlight: | Wireless Mechanical Cylinder Filling Scale,Carbon Dioxide Gas Cylinder Filling Scale,ATEX Wireless Gas Cylinder Filling Scale |
||
Product Description
ATEX Wirelss Mechanic Filling Scale Lithium Battery For Carbon Dioxide Gas Carbonated Drinks Factory
This mechanic filling scale is used for weight bewteen 2kg-180kgs cylinders for liquid industrail gas, like CO2...
Wireless Ex-proof Li-ion Battery Machine, no limits of electric power. It could tracking the filling data by mobile APP or opening website for tracking, even if the scales are in different filling station.
The advantages of the filling scale machine:
- With three different filling model : net filling, totall filling and standard filling
- Easy to operate, fast filling, one operator can operate 2~3platform balance;
- By the national testing center of explosion-proof electrical testing, with legal qualifications(ATEX, CNEX cetificates)
- It uses a safe, reliable & explosion-proof battery.
- Could automatically save filling data if need, when power or network failure, saving data to ensure safe and reliable statistical data, when power or network is available again, the saved data will be automatically transferred;
- OLED display clear keypad board convenient and easy to operate;
- Setting the upper and lower limits of the weight of empty bottles to ensure the safety of the filling;
- Automatic eliminate the effect of tensional force of weight of nozzle, hose on filling accuracy;
| Performance parameters | |
| Module | S-TCS-YG-SV Li-ion Battery |
| Accuracy | III |
| Min. & Max. weighing | 2KG-120KG or 2KG-180KG |
| Certificates | CNEX, ATEX, ISO9001 |
| Div. | 50g |
| Operating pressure | 0~1.6Mpa |
| Suitable gas | LPG |
| Ex-proof | Ex ib IICT4 Gb |
| Power Supply | Li-ion battery |
| Color | Orang&Silver |
Detailed spare parts of LPG filling scale, including:
Soldenoid valve, power box, hanging barrel, tools, display, LPG pipes, cable pipes, support rod,
scale platform, scanner and holder, seals

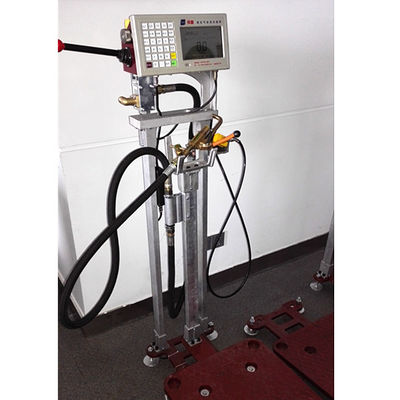

Application photo from one of our clients:
The process of filling:
1. Place the cylinder on the empty scale platform and scan the cylinder barcode(press the scan key, and the laser line will be aligned with barcode symbol)
2. Open the valve(pressure handle) and start filling
3. After filling, the data will be transmitted into software system. Automatically cut off of the arrivak quantity and wirelss transmission of data. Through the software, the daily filling data and files can be statistically summarized.
4. The software system updates in real time and uploads the filling data to the network platform.
1. What is your MOQ?
Answer: 1 unit
2. If I want a good discount, how many LPG filling scales do I need to purchase?
Answer: pls contact vickie@czxkdz.com for more details
3. What's the way to transport the LPG filling scale?
Answer: By air or by sea as request.
4. Do you have after-sales service in your company?
Answer: Yes. When the customer receives the LPG filling scale, we will guide the customer to install the LPG filling scale.
5. If I have my own freight forwarder in China, can you send the LPG filling scale to my agent?
Answer: It's OK, we will arrange and deliver the goods as request.
6.How to install the scale?
Answer: Installation videos and user manual will be shared to help, and will online support if need.
7. Is it suitable for CO2?
Answer: Yes, it is designed for liquefied gas(liquid industrial gas, LPG,etc.)
